PV IV Measurement Systems


Standard Probe Station Chucks and Accessories

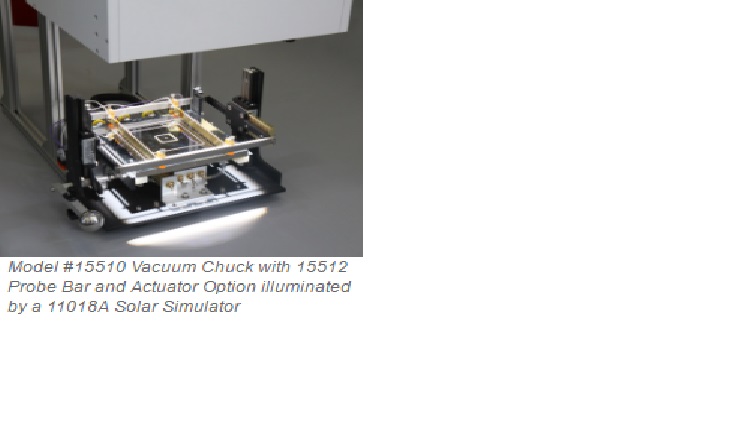

Model #15510 Vacuum Chuck with 15512 Probe Bar & Actuator option illuminated by a 11018A Solar Simulator

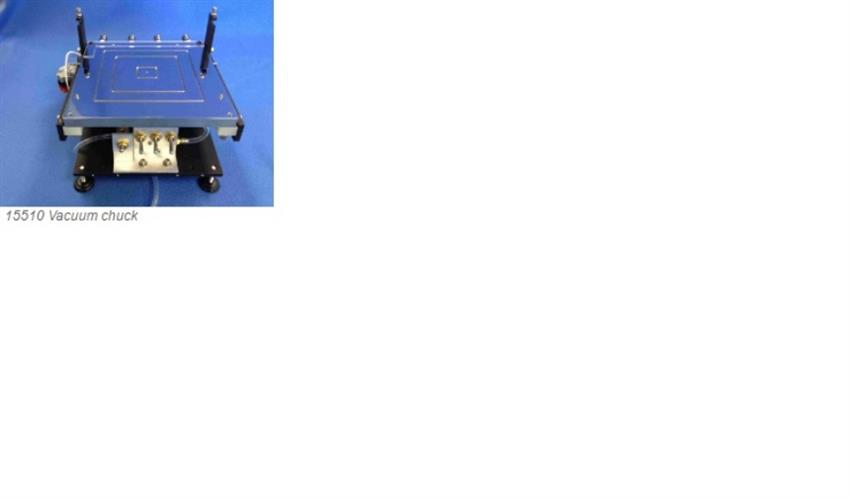

Vacuum Chucks

Multi Zone Vaccum Chucks:

Abet Multi-Zone Vacuum chucks are available in four standard sizes,
50 x 50 mm, 156 x 156 mm, 210 x 210 mm and 300 x 300 mm. Cells from
3 x 3 mm to the chuck maximum size can be accomodated A set of cell
locators is included with each chuck to allow for reproducible
positioning of the devices.


Micromanipulator Base Option:


The micromanipulator base option provides two magnetic platforms
for micromanipulators. The bases are fully adjustable so that
micromanipulators can contact anywhere on a cell.
