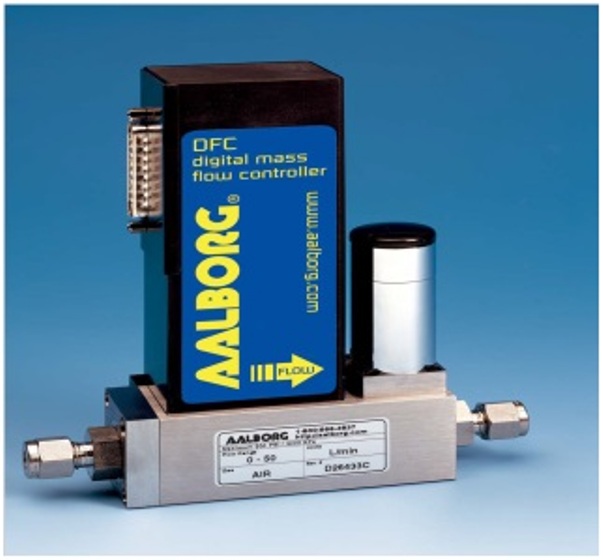

DFC Digital Flow Controller
Digital and Analog modes operate simultaneously.
Programmable Flow Configurations.
Flow Range: 10mL/min to 100mL/min
Multi-Drop Capability of up to 256 units.
Stores calibration data for up to 10 gases.
Auto Tune function for optimum control response.
Free PC Software with Gas Blending and Programmable Flow functions.
Totalizer indicates total gas quantity.
Alarm limits for high and low gas flow.
Conversion factors for up to 256 gases.
Self-Diagnostic Tests..

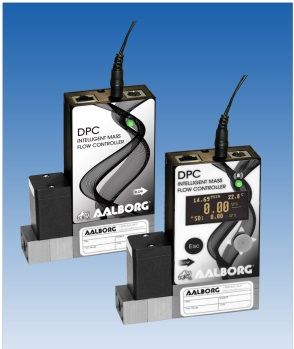

DPC Digital Multi Gas Mass Flow Controller
Simultaneously displays Mass Flow, Volumetric Flow, Pressure and Temperature.
Multi-Gas functionality: support for 90 different gases and gas mixes.
“User Defi ned Mixture” functionality allows to create and store up 20 custom gas mixes with up to 5 different gases each.
Quick (100-150 ms) response time.
Flow Range: 0.5 mL/min to 1000L/min
Standard accuracy ± (0.5[%] RD + 0.2[%] FS).
200 to 1 turn-down ratio.
Two programmable mass fl ow rate totalizers.
0-5Vdc, 0-10Vdc, 4-20mA.
RS-232/ RS-485).
Programmable set point table with ramping up/down capability up to 16 steps.

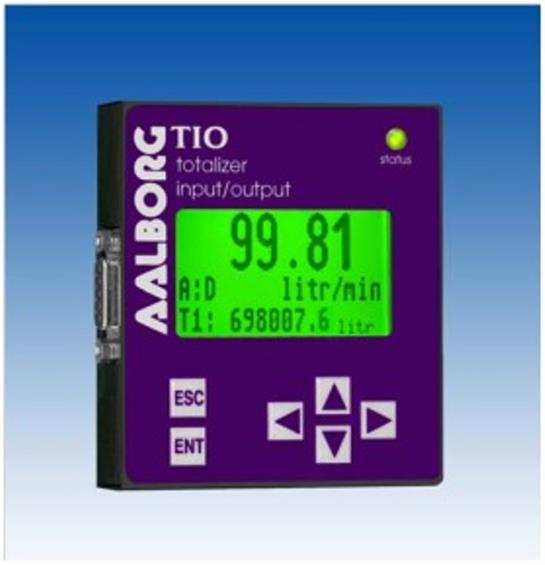

Totalizers
Displays instantaneous, total and accumulated flow rates.
Built-in Flow Linearizer (10 point linearization of the flow curve).
Up to 47 different volumetric and mass flow engineering units.
Large 13mm (0.51") digits for flow rate and 5.5mm (0.21") for Total.
Digital RS-232 or RS-485 interface (multi-drop capability of up to 64 devices.)
Compact design for unit mount, panel mount, wall mount or field mount applications.
User-programmable, optically-isolated pulse output.
Two programmable, optically-isolated, digital outputs. Flow controllers, set point command control via local LCD or digital interface.

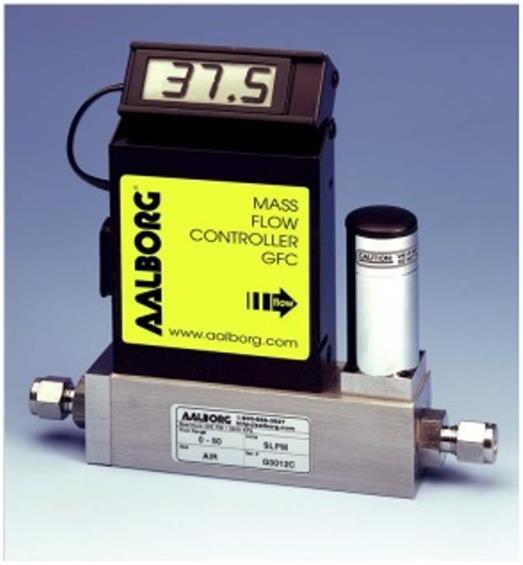

GFC Analog Mass Flow Controller
Rigid metallic construction.
Maximum pressure of 1000 psig (70 bars).
Flow Range: 0.5mL/min to 1000L/min
Maximum Flow Range from 0.5 mL/min to 1000L/min
Leak integrity 1 x 10-9 smL/sec of helium.
NIST traceable certification.
Built-in tiltable LCD readout.
Local or remote setpoint control.
0-5 Vdc and 4-20 mA signals.
Circuit protection.
TIO Totalizer option.

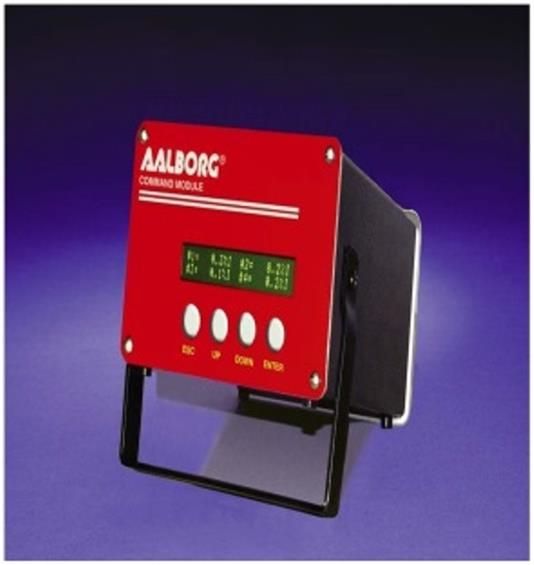

Smart Digital Command Module
Microprocessor driven digital Command Modules
Used in conjunction with any analog or digital mass flow controllers .
With 0-5 Vdc input /output signals. One, two, three and four channel Command Module configurations are available.
Command Modules contain appropriate power supplies, 24x2 alpha-numeric dot matrix display readout,
Four panel buttons which provide complete control over all the various functions necessary to measure and/or control flow.
GFC Analog Mass Flow Controller
Rigid metallic construction.
Maximum pressure of 1000 psig (70 bars).
Flow Range: 0.5mL/min to 1000L/min
Maximum Flow Range from 0.5 mL/min to 1000L/min
Leak integrity 1 x 10-9 smL/sec of helium.
NIST traceable certification.
Built-in tiltable LCD readout.
Local or remote setpoint control.
0-5 Vdc and 4-20 mA signals.
Circuit protection.
TIO Totalizer option.
Smart Digital Command Module
Microprocessor driven digital Command Modules
Used in conjunction with any analog or digital mass flow controllers .
With 0-5 Vdc input /output signals. One, two, three and four channel Command Module configurations are available.
Command Modules contain appropriate power supplies, 24x2 alpha-numeric dot matrix display readout,
Four panel buttons which provide complete control over all the various functions necessary to measure and/or control flow.
DFC Digital Flow Controller
Digital and Analog modes operate simultaneously.
Programmable Flow Configurations.
Flow Range: 10mL/min to 100mL/min
Multi-Drop Capability of up to 256 units.
Stores calibration data for up to 10 gases.
Auto Tune function for optimum control response.
Free PC Software with Gas Blending and Programmable Flow functions.
Totalizer indicates total gas quantity.
Alarm limits for high and low gas flow.
Conversion factors for up to 256 gases.
Self-Diagnostic Tests..
DPC Digital Multi Gas Mass Flow Controller
Simultaneously displays Mass Flow, Volumetric Flow, Pressure and Temperature.
Multi-Gas functionality: support for 90 different gases and gas mixes.
“User Defi ned Mixture” functionality allows to create and store up 20 custom gas mixes with up to 5 different gases each.
Quick (100-150 ms) response time.
Flow Range: 0.5 mL/min to 1000L/min
Standard accuracy ± (0.5[%] RD + 0.2[%] FS).
200 to 1 turn-down ratio.
Two programmable mass fl ow rate totalizers.
0-5Vdc, 0-10Vdc, 4-20mA.
RS-232/ RS-485).
Programmable set point table with ramping up/down capability up to 16 steps.
Totalizers
Displays instantaneous, total and accumulated flow rates.
Built-in Flow Linearizer (10 point linearization of the flow curve).
Up to 47 different volumetric and mass flow engineering units.
Large 13mm (0.51") digits for flow rate and 5.5mm (0.21") for Total.
Digital RS-232 or RS-485 interface (multi-drop capability of up to 64 devices.)
Compact design for unit mount, panel mount, wall mount or field mount applications.
User-programmable, optically-isolated pulse output.
Two programmable, optically-isolated, digital outputs. Flow controllers, set point command control via local LCD or digital interface.
